Plug-In the Wall... Grid-Tie Inverters !!
For Solar or Wind !
300 / 360 / 500 / Watt Units
We have them in Stock!!
☀ These are the Inverters that Last! Very Tough! ☀
>>> Finally!!
<<<
Your Solar - OR - Wind
Power
...to be connected to the "household current" for putting your own
generated electrical power into the main utility power grid.
( Video of Savanna (!) with Our 300 Watt GT Inverter )

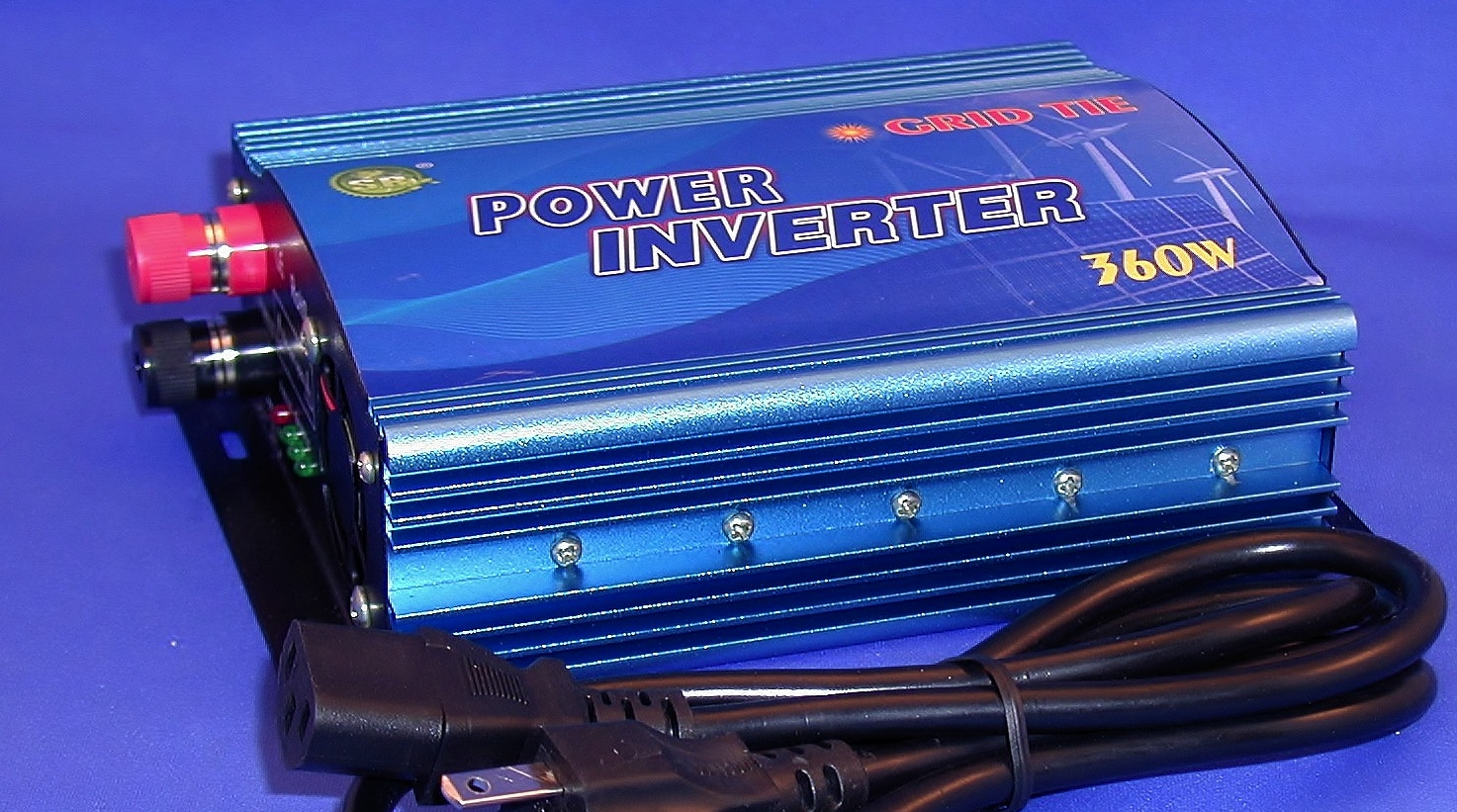

Smart Sine Wave SOLAR Inverter-GT 360 Watt
Low-Cost, Grid-Tied
Inverters that allows power generated from...
...to be connected to the "household current" for putting your own
generated electrical power into the main utility power grid.
( Video of Savanna (!) with Our 300 Watt GT Inverter )
Smart Sine Wave SOLAR Inverter-GT 360 Watt
360
Watt Solar Grid Tie Inverter for use with Solar Panels only. 14v-28volt
DC input range.
Simple plug and play operation with no batteries or controllers needed.
Outputs clean pure sign wave. Also cleans the waveform supplied by the electric company
to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated
from the solar power at any time WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter,
so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
What is it? How does a device that can handle various forms of DC electrical power input and
convert it into AC power suitable for injection to the AC mains (or power grid )?
The inverter is directly connected to the grid or mains, and is therefore called a "grid-tied inverter."
It is this easy: connect the GT350W grid-tied inverter to any Solar DC power generating source(s)
with a combined optimum output of max. 360W DC,
and connect the inverter AC output to any of the home circuit (GFI) AC outlets.
No batteries are needed using this inverter with a solar panel system.
The output of the inverter is simply a power cord that plugs into
any GFCI (ground fault circuit interrupter) outlet in your home.
These outlets are commonly found in wet locations such as kitchens,
bathrooms or outdoors on a patio.
And the inverter will shut itself off in the event of a grid power failure,
protecting utility workers upstream.
You can connect multiple units in parallel with additional solar panels,
to ultimately have the meter spin backwards and feed
the “Main Grid” during the daylight hours.
This results in the electrical meter turning slower.
Thus... saving you money.
And the inverter will shut itself off in the event of a grid power failure,
protecting utility workers upstream.
Specifications:
• Normal AC Output Power: 330 Watts
• Maximum AC Output Power: 360 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <0.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non- UL listed
GT360PV....$239.00 + ship.

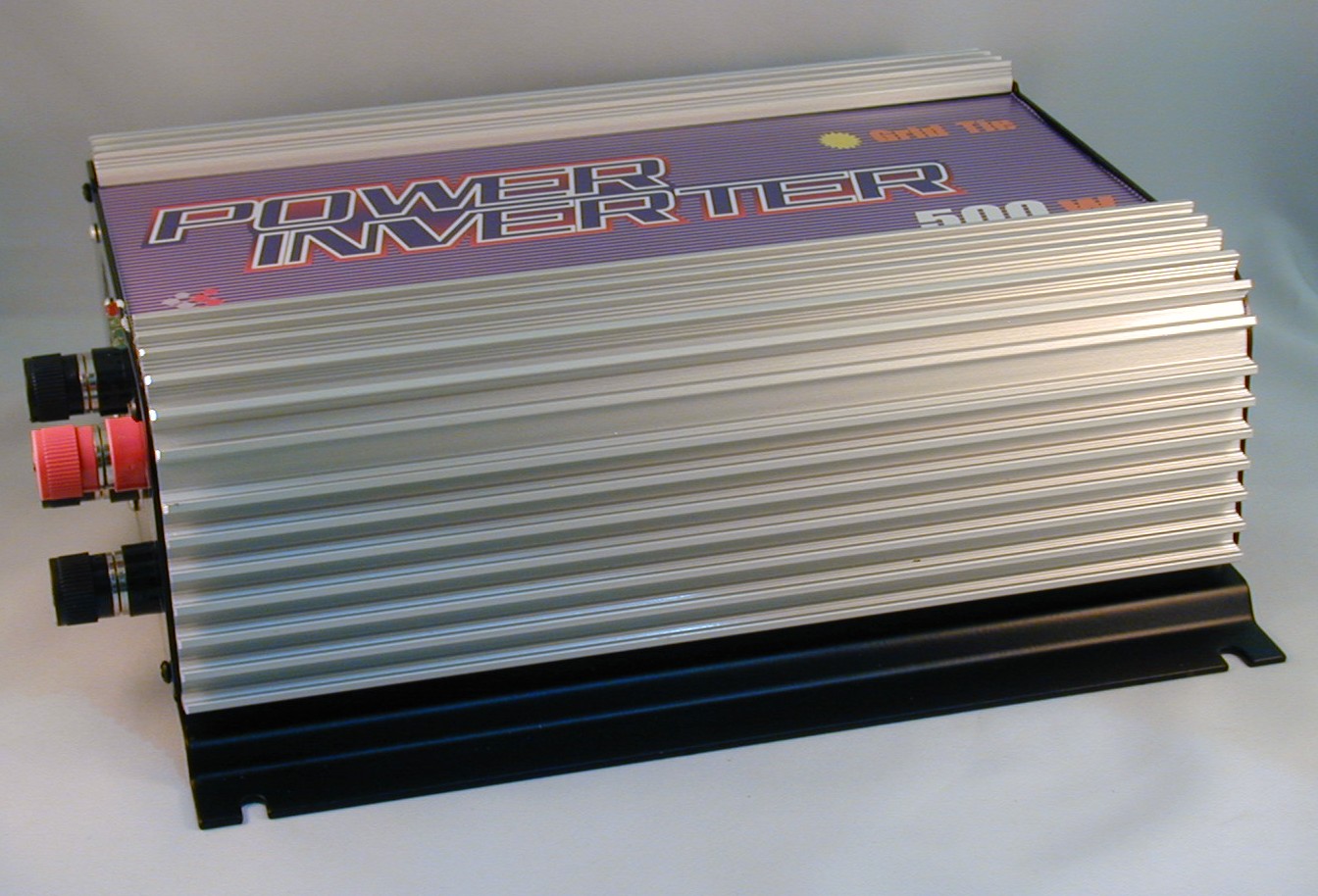

GT500 Watt Solar Grid Tie Inverter 24-52v DC
500 Watt solar grid tie inverter for use with SOLAR set-ups only. 24-52 Volt DC input range.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated
from solar power at any time WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter,
so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
You can connect multiple units in parallel with additional solar panels, to ultimately have the meter spin backwards
and feed the “Main Grid” during the daylight hours. This results in the electrical meter turning slower.
Thus... saving you money.
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 90 Volts ~ 130 Volts
• AC Output Frequency Range: 46 Hz ~ 65 Hz
• Total Harmonic Distortion (THD): <5%
• Power Factor: 0.99
• DC Input Voltage Range: 24 Volts ~ 52 Volts
• Peak Inverter Efficiency: 92%
• Standby Power Consumption: <0.5 Watt
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• non ul listed
• Stackable: Yes
GT500PV - 329.00 + ship
Simple plug and play operation with no batteries or controllers needed.
Outputs clean pure sign wave. Also cleans the waveform supplied by the electric company
to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated
from the solar power at any time WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter,
so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
What is it? How does a device that can handle various forms of DC electrical power input and
convert it into AC power suitable for injection to the AC mains (or power grid )?
The inverter is directly connected to the grid or mains, and is therefore called a "grid-tied inverter."
It is this easy: connect the GT350W grid-tied inverter to any Solar DC power generating source(s)
with a combined optimum output of max. 360W DC,
and connect the inverter AC output to any of the home circuit (GFI) AC outlets.
No batteries are needed using this inverter with a solar panel system.
The output of the inverter is simply a power cord that plugs into
any GFCI (ground fault circuit interrupter) outlet in your home.
These outlets are commonly found in wet locations such as kitchens,
bathrooms or outdoors on a patio.
And the inverter will shut itself off in the event of a grid power failure,
protecting utility workers upstream.
You can connect multiple units in parallel with additional solar panels,
to ultimately have the meter spin backwards and feed
the “Main Grid” during the daylight hours.
This results in the electrical meter turning slower.
Thus... saving you money.
And the inverter will shut itself off in the event of a grid power failure,
protecting utility workers upstream.
Specifications:
• Normal AC Output Power: 330 Watts
• Maximum AC Output Power: 360 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <0.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non- UL listed
GT360PV....$239.00 + ship.
GT500 Watt Solar Grid Tie Inverter 24-52v DC
500 Watt solar grid tie inverter for use with SOLAR set-ups only. 24-52 Volt DC input range.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated
from solar power at any time WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter,
so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
You can connect multiple units in parallel with additional solar panels, to ultimately have the meter spin backwards
and feed the “Main Grid” during the daylight hours. This results in the electrical meter turning slower.
Thus... saving you money.
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 90 Volts ~ 130 Volts
• AC Output Frequency Range: 46 Hz ~ 65 Hz
• Total Harmonic Distortion (THD): <5%
• Power Factor: 0.99
• DC Input Voltage Range: 24 Volts ~ 52 Volts
• Peak Inverter Efficiency: 92%
• Standby Power Consumption: <0.5 Watt
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• non ul listed
• Stackable: Yes
GT500PV - 329.00 + ship

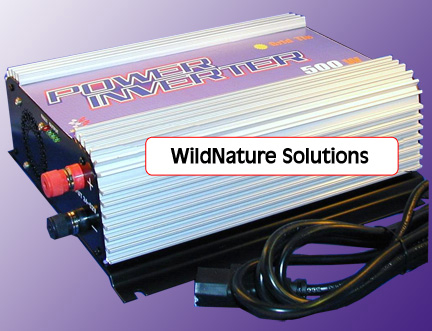

Smart
Sine Wave WIND
Inverter-GT500 Watt 10.8 -30VDC
Wind turbine 3 Phase AC or DC input version with dump load. For use with any 3 phase or DC wind turbines with 10v-30volt + output.
If you have a 3 phase wind turbine simply use one of our 3 phase bridge rectifiers which will convert the 3 phase to DC.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated from wind and solar power
at any time WITHOUT the need for expensive energy storage units. Connection is made on the homeowner's side of the
electrical meter into any outlet, so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GT500DC....$399.00 + ship.
GT500 - 3Phase Wind Inverter 10.8-30 VDC
Wind turbine 3 Phase AC input version with dump load.
For use with any 3 phase wind turbines with 10v-30volt + output.
Simple plug and play operation with no batteries or controllers needed.
Outputs clean pure sign wave. Also cleans the waveform supplied by the electric company
to make your appliances run smoother and last longer. Not like the ordinary inverters,
the grid tied inverter lets you use the power generated from wind and solar power at any time
WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter into any outlet
(GFI outlet preferred), so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GTI500-3P1030...$399.00 + ship.

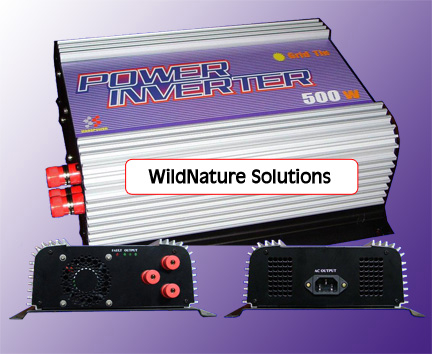

GT500 - 3Phase Wind Inverter 22-60 VDC
Wind turbine 3 Phase AC input version with dump load.
For use with any 3 phase wind turbines with 22v-60volt + output.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated from wind and solar power at any time
WITHOUT the need for expensive energy storage units. Connection is made on the homeowner's side of the electrical meter into any outlet
(GFI outlet preferred), so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 22 volt - 60 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GT500-3P2260....$399.00 + ship.
Wind turbine 3 Phase AC or DC input version with dump load. For use with any 3 phase or DC wind turbines with 10v-30volt + output.
If you have a 3 phase wind turbine simply use one of our 3 phase bridge rectifiers which will convert the 3 phase to DC.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated from wind and solar power
at any time WITHOUT the need for expensive energy storage units. Connection is made on the homeowner's side of the
electrical meter into any outlet, so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GT500DC....$399.00 + ship.
GT500 - 3Phase Wind Inverter 10.8-30 VDC
Wind turbine 3 Phase AC input version with dump load.
For use with any 3 phase wind turbines with 10v-30volt + output.
Simple plug and play operation with no batteries or controllers needed.
Outputs clean pure sign wave. Also cleans the waveform supplied by the electric company
to make your appliances run smoother and last longer. Not like the ordinary inverters,
the grid tied inverter lets you use the power generated from wind and solar power at any time
WITHOUT the need for expensive energy storage units.
Connection is made on the homeowner's side of the electrical meter into any outlet
(GFI outlet preferred), so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 10.8 volt - 30 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GTI500-3P1030...$399.00 + ship.
GT500 - 3Phase Wind Inverter 22-60 VDC
Wind turbine 3 Phase AC input version with dump load.
For use with any 3 phase wind turbines with 22v-60volt + output.
Simple plug and play operation with no batteries or controllers needed. Outputs clean pure sign wave.
Also cleans the waveform supplied by the electric company to make your appliances run smoother and last longer.
Not like the ordinary inverters, the grid tied inverter lets you use the power generated from wind and solar power at any time
WITHOUT the need for expensive energy storage units. Connection is made on the homeowner's side of the electrical meter into any outlet
(GFI outlet preferred), so that locally produced power will offset any local load the homeowner has.
The electrical meter will run slower, because power is being supplied on the homeowner's side.
This will result in LOWER electricity bills
• Normal AC Output Power: 450 Watts
• Maximum AC Output Power: 500 Watts
• AC Output Voltage Range: 110v/120v or 90v-130v
• AC Output Frequency Range (Hertz): 46Hz ~ 65Hz
• Total Harmonic Distortion(THD:) <5%
• Power Factor: 0.99
• Wind Turbine Input Voltage Range: 22 volt - 60 volt
• Peak Inverter Efficiency; 92%
• Standby Power consumption; <1.5W
• Output Current Waveform: Pure Sine-wave
• MPPT Function: Yes
• Over Current Protection: Yes
• Over Temperature Protection: Yes
• Reverse Polarity Protection: Yes
• Island Protection: Yes
• Stackable: Yes
• non ul listed
(wind) GT500-3P2260....$399.00 + ship.
from the wind or solar power at any time WITHOUT the need for expensive, hard wired, Installed Inverters.
Connection is made( just plug it in the wall !) on the homeowner's side of the electrical meter,
so that locally produced power will offset any local load the homeowner has.
The electrical meter will run much slower, because power is being
supplied on the homeowner's side.
This will result in LOWER electricity bills
In the near Future, Many USA and European power supply companies
may actually pay cash for any excess power produced,
making the GT grid-tied inverters an investment to our future !
_______________________________________________
What is it... How does it really work...
The GT grid-tied inverters are an electronic device that can handle various forms of
DC electrical power input and convert it into AC power suitable for injection to the AC power grid ).
The inverter is directly connected to the grid and is therefore called a " grid-tied inverter ".
("Grid-tied" and "grid-tie" mean the same).
It is this easy: connect the GT grid-tied inverters to any
Solar/Wind DC power generating source(s) and connect the inverter AC output to any of the
home circuit AC outlets,
and you are feeding clean and free electricity on the house side of the
No batteries are needed using these
Inverters with a solar panel or wind turbine system
The output of the inverter is simply a power cord that plugs into any outlet in your home.
You can connect multiple GT units in parallel with additional Solar Panels,
to ultimately have the meter spin backwards and feed the “Main Grid” during the daylight hours.
This results in the electrical meter turning slower
Thus... saving you money.
And the GT Inverter will shut itself off in the event of a Grid power failure,
protecting utility workers upstrean.
(multiple PV Solar panels can be connected in parallel and attached to a single GT Inverter.)
Multiple-Units can be paralleled for greater power input to the "Grid"
Simple installation
Rugged construction
Fully automatic operation
Circuit Protection
110VAC & 240 VAC (North America and Europe)
Note: Due to the Broad Variety of Applications for our Products by our customers,
There is no Return, Exchange nor Refund on any Electrical Parts or Electrical Products.
NOTE: This unit is NOT UL listed, bu it is UL compliant, so it can only be represented as an experimental device.
It does shut down and disconnect from the grid if it senses that the grid has gone down (power outage).
This protects utility workers from electrocution while working on power lines. You must assume all liability when using this device.
